NS7 TB
- Transparent Bucket Technology
- A cutting-edge technology introduced recently to eliminate blind spots on heavy equipment vehicles such as wheel loaders caused by the bucket.
- Areas obscured by the bucket are captured by cameras mounted below and synthesized to provide clear display, effectively removing blind spots.
- This technology is expanding to new markets, so its development provides an opportunity to gain first-mover advantage in the aftermarket (AM) sector.
- Differentiated with AI-based object recognition and warning functions, enhancing safety and operational awareness.
Technology Implementation Status
A demo set was produced in November 2024 based on a scale model vehicle and introduced to the Brigade
Following the introduction, the project has been actively developed within the Brigade with OEM contacts ongoing
The development of automatic calibration and pedestrian detection (PD) technologies for real vehicles is in progress →
On-site real vehicle testing scheduled for May, with mass production targeted for October

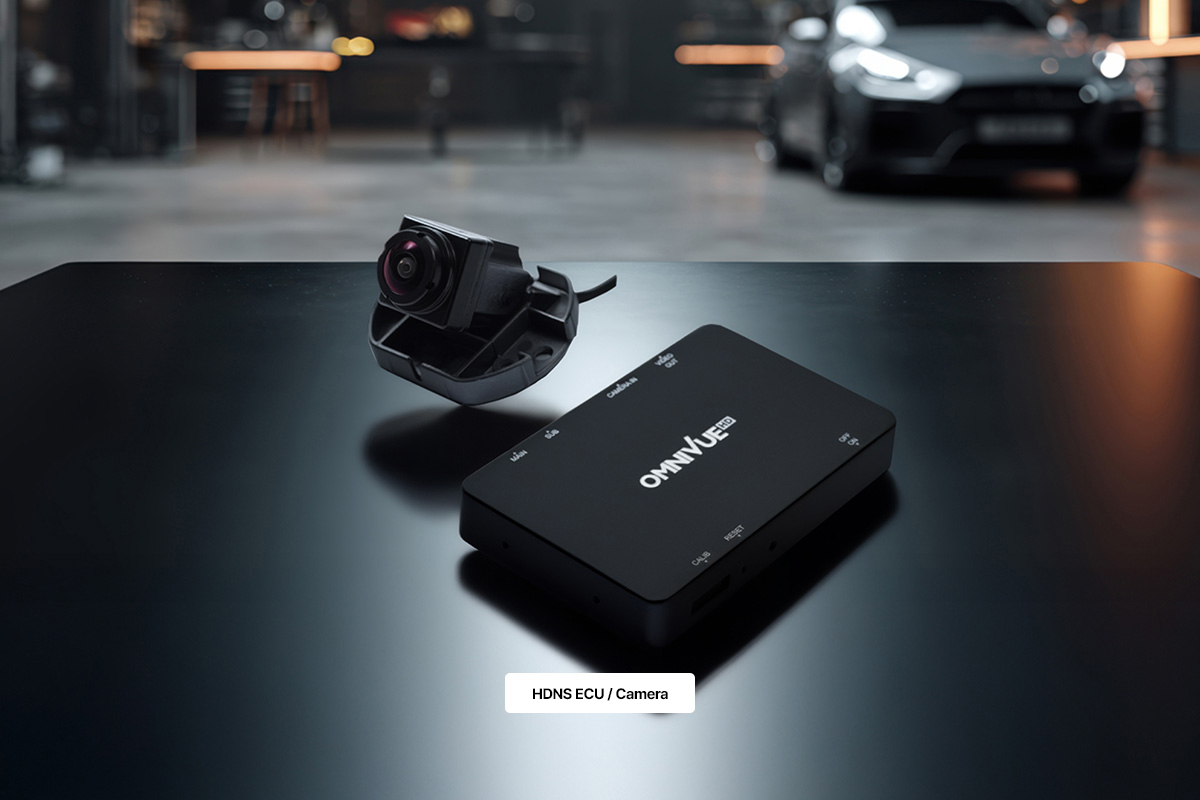

Surround View
Monitoring
System (HDNS)
- Product Overview
- Developing, mass-producing, and supplying SVM systems
- Specification
- - IP Level: IP69K
- Resolution: HD
- FOV: 190.5° (H) /119° (V)
Product Specifications
| Products | HDNS (SVM System) |
|---|---|
| Product Configuration | ECU x 1ea / Camera x 4ea |
| Resolution | HD (1280 x 720) |
| Video output | TVI / CVBS / AHD |
Surround View
Monitoring
System (NS7)
- Product Overview
- Developing, mass-producing, and supplying AI SVM systems
- Specification
- IP Level: IP69K
- Resolution: FHD
- FOV: 191.9°(H) x 124.0°(V)
Product Specifications
| Products | NS7 (AI SVM System) |
|---|---|
| Product Configuration | ECU x 1ea / Camera x 4ea |
| Product Feature | Featuring AI-based PD and warning functions |
| Resolution | FHD (1920 x1080) |
| Video output | TVI / CVBS / AHD |
